The structure and performance of steel pipe products
Product presentation

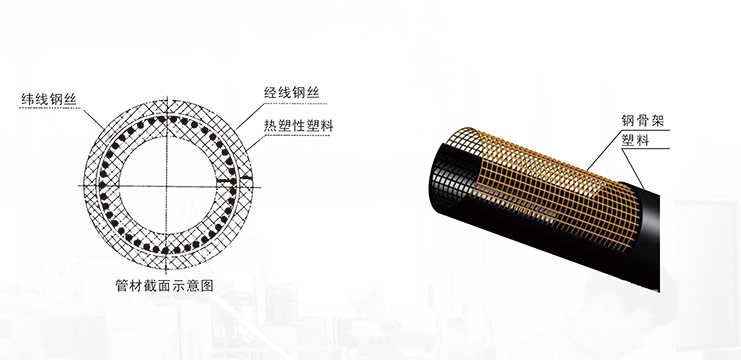

"Sushan Shuijiang" brand steel frame polyethylene plastic composite pipe is a kind of steel wire mesh that is wound and welded as the reinforcing frame, and thermoplastic plastics such as polyethylene as the matrix, and the two are evenly compounded together. Composite structural pipes for continuous production. The polyethylene raw material for the production of steel skeleton polyethylene plastic composite pipe adopts the special material for high-density polyethylene pipe or the special material for medium-density polyethylene pipe (gas transportation), and the steel wire adopts ordinary low-carbon steel wire. It is mainly suitable for oil, gas, sewage transportation and mixed transportation in petroleum and natural gas industries, as well as drinking water, fire fighting and corrosive medium transportation. The operating temperature is -40°C ~ 80°C.

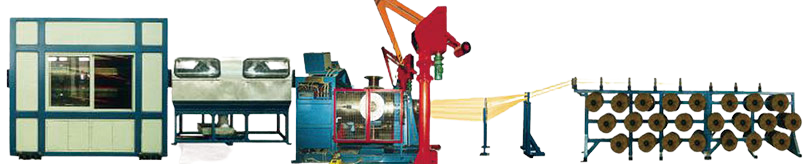

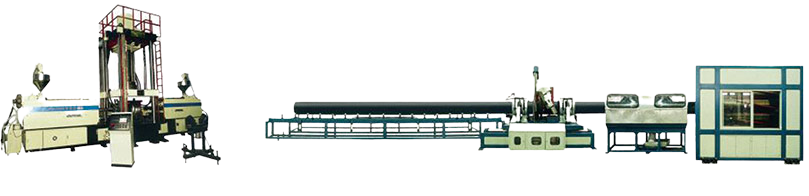

Pipe production process
Product features
Steel skeleton polyethylene plastic composite pipe has the common characteristics of anti-corrosion, no scaling, smooth low resistance, heat preservation, no condensation, wear resistance, light weight and other plastic pipe, and its unique structure also created the following characteristics:
• Good creep resistance, high lasting mechanical strength
• Good temperature resistance
• Good self-tracer
• Convenient and flexible adjustment of product structure and performance
• Good rigidity, impact resistance, dimensional stability,
• The composite of steel and plastic is uniform and reliable
• Double-sided anticorrosion
• Low coefficient of thermal expansion
• No rapid cracking, and moderate flexibility, rigid and soft
• Low manufacturing cost, high performance-to-price ratio, strong market competitiveness
Pipe specifications and parameters
Nominal outer diameter, nominal pressure and limit deviation of steel frame polyethylene plastic composite pipe
Pipe specifications and parameters

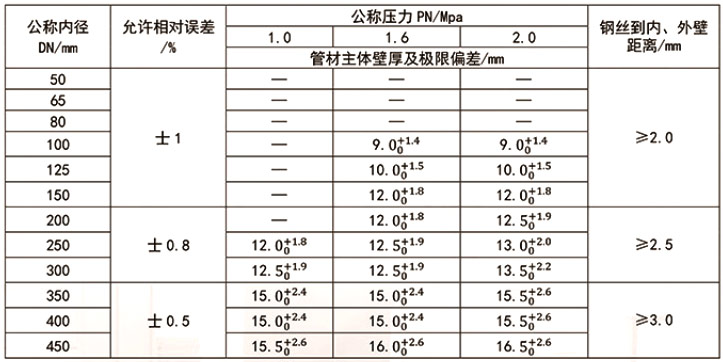

Allowable relative error of steel frame polyethylene plastic composite pipe, wall thickness and limit deviation of pipe body, distance between steel wire and inner and outer wall
Pipe Ring Stiffness
The minimum allowable bending radius of pipe material
Space for laying brackets
Temperature correction coefficient nominal pressure temperature correction factor (water supply)
Nominal pressure temperature correction factor (industry)
The pressure temperature correction factor for conveying gas nominal

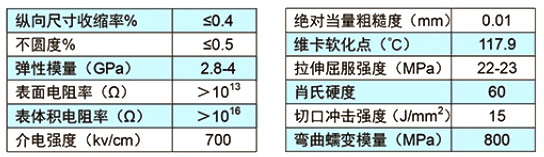

Other main technical parameters of steel frame plastic compound pipe

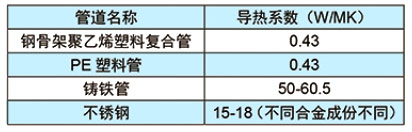

Thermal conductivity of steel frame plastic pipe

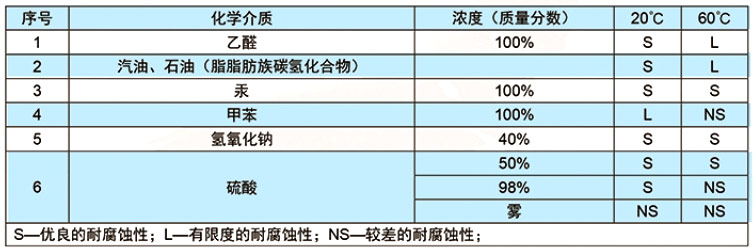

Chemical corrosion resistance of composite pipes (common corrosion media)

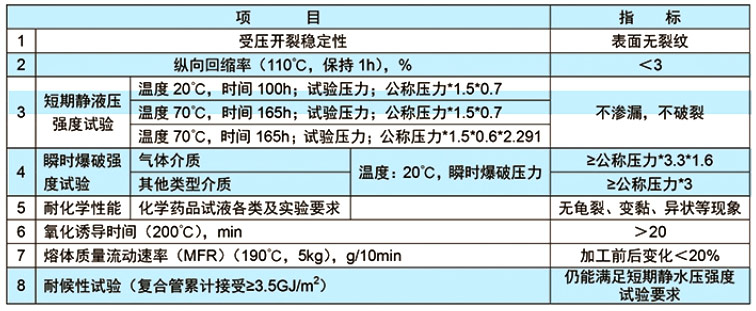

Physical mechanical properties
